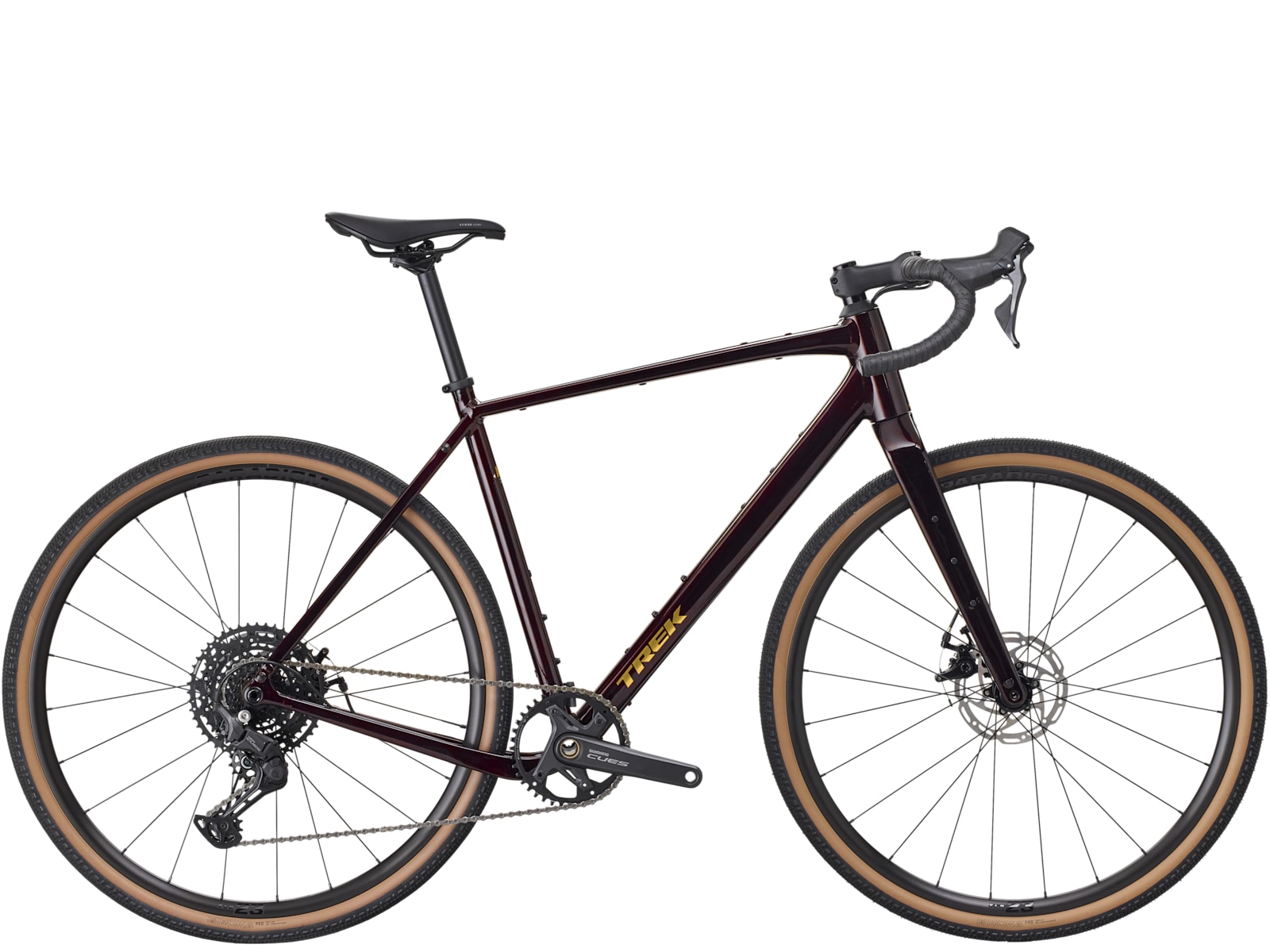

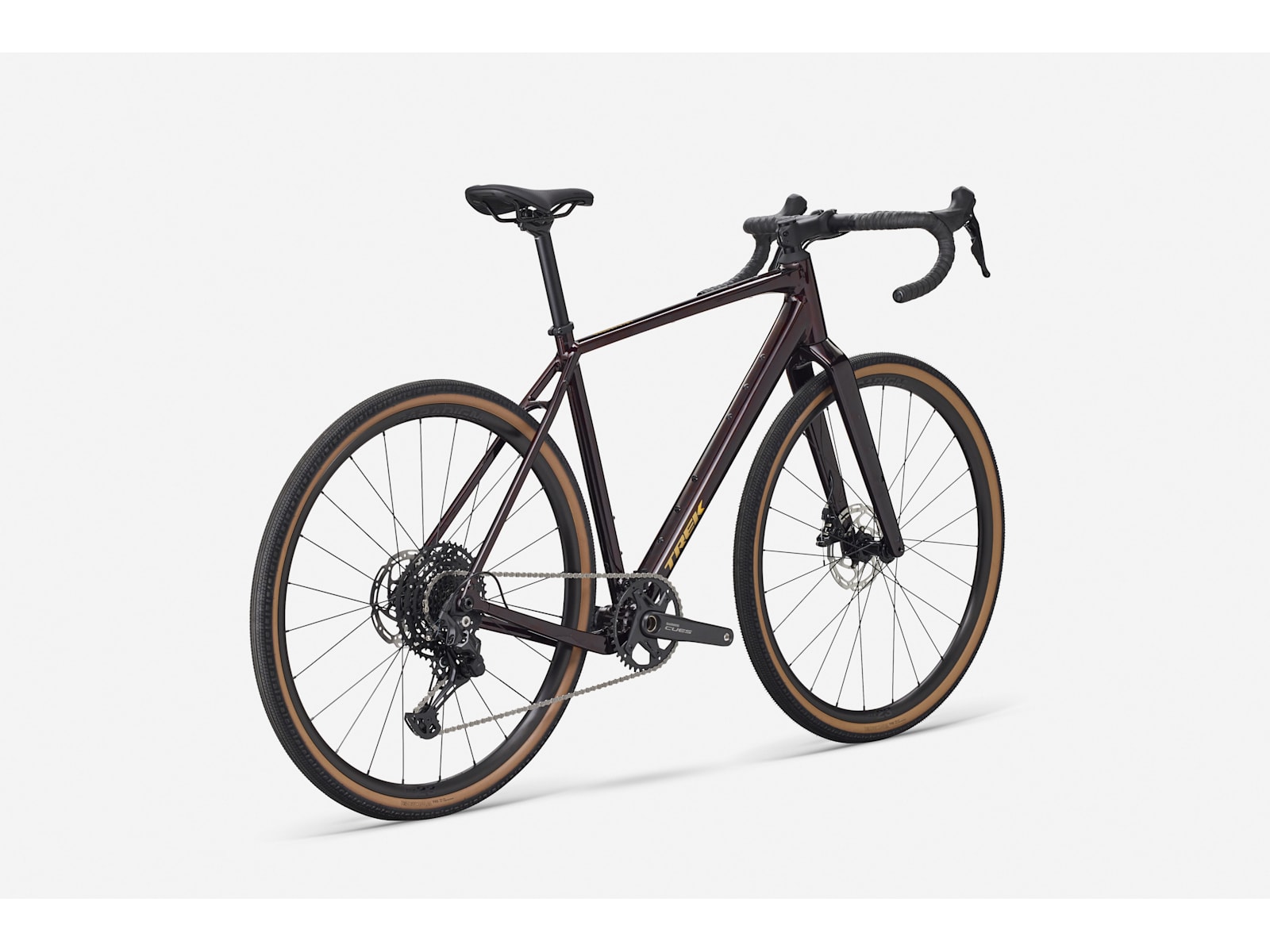

Trek Checkpoint ALR3 Gen 3 Dark Carmine
| Brand: | Trek |
| Model: | Checkpoint ALR3 |
| Frame: | 300 Series Alpha Aluminium, Internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm chamfered thru axle |

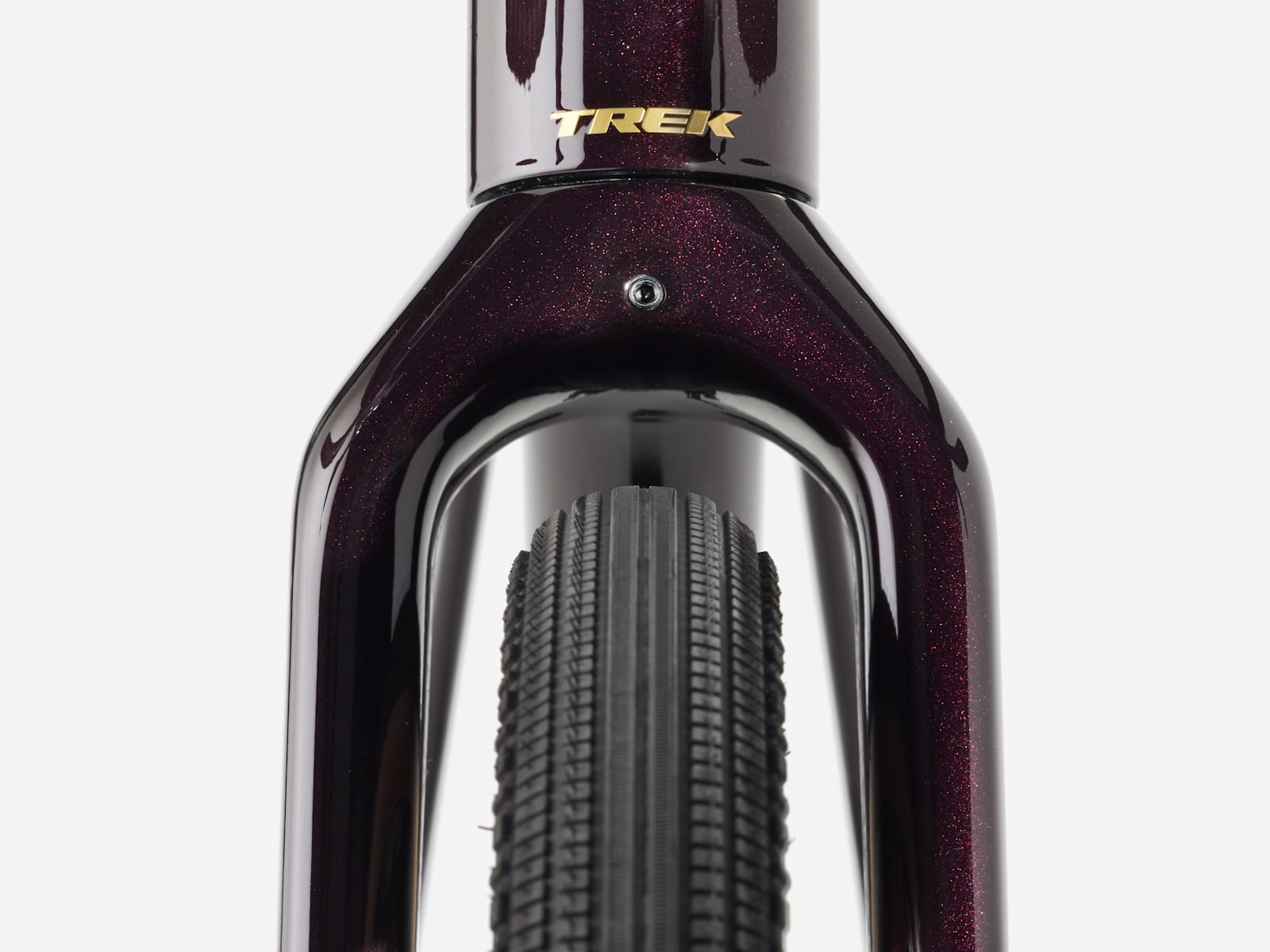

| Fork: | Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Brakeset: | Tektro C550 mechanical disc brake, dual piston, flat mount |
| Hubs: | Front: Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle. Rear: Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Rims: | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |

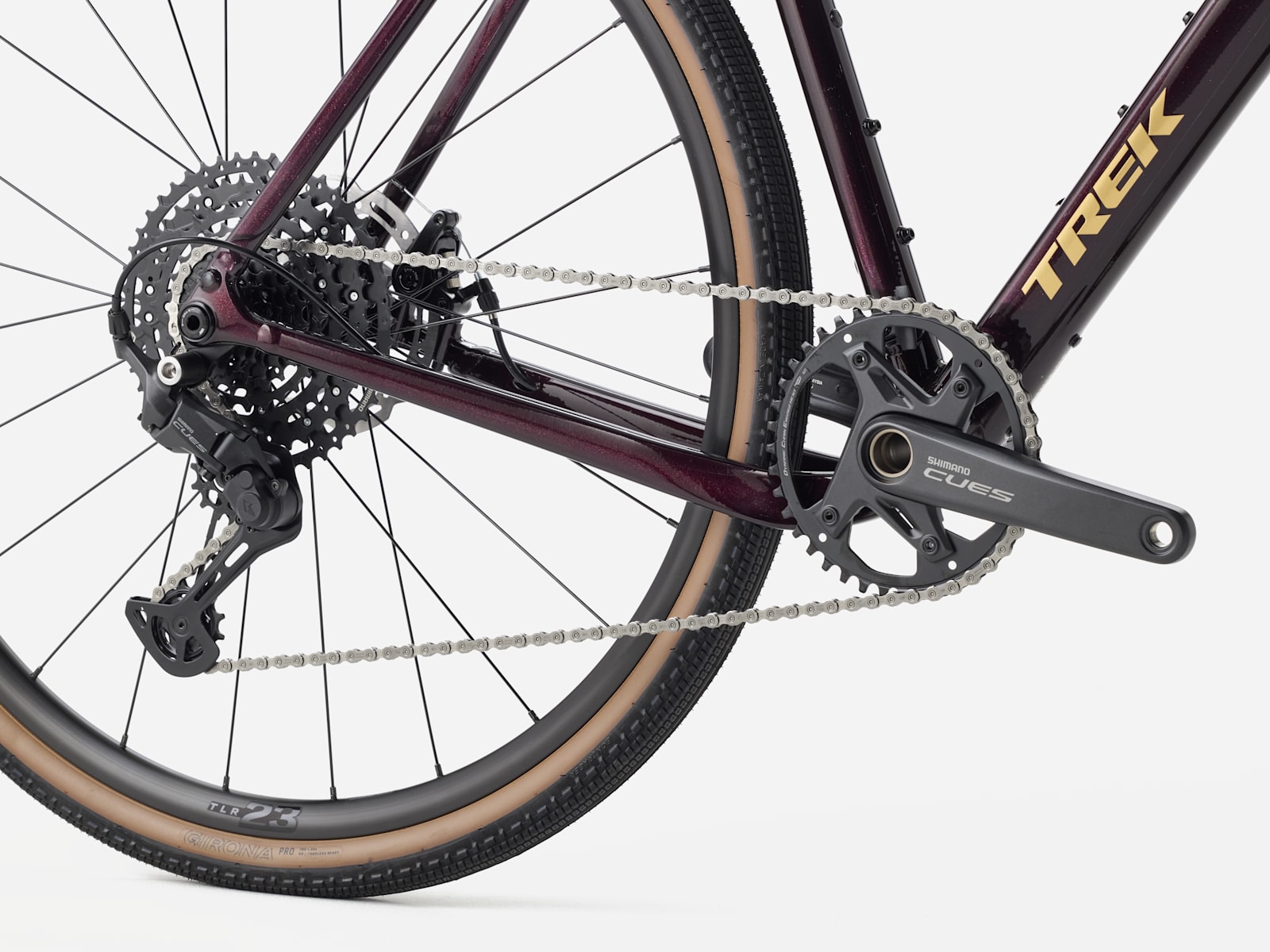

| Crankset: | Shimano CUES FCU60301, 40T ring |
| Rear derailleur: | Shimano CUES U6000 GS |
| Sizes: | S, M, L, XL |
| Colors: | Dark Carmine |
- Overview
- Features
- Video
- Images
The Checkpoint ALR 3 is an adventure-ready alumin’um gravel bike built for exploring anywhere. Its modern endurance geometry keeps you comfortable over gravel roads or potholes, while a carbon fork helps cut down the road vibrations. It's spec'd to go anywhere without breaking the bank, with Bontrager Paradigm wheels, clearance for 50 mm tyres,10-speed Shimano CUES 6000 shifting, mechanical disc brakes and loads of mounts for bags and accessories.

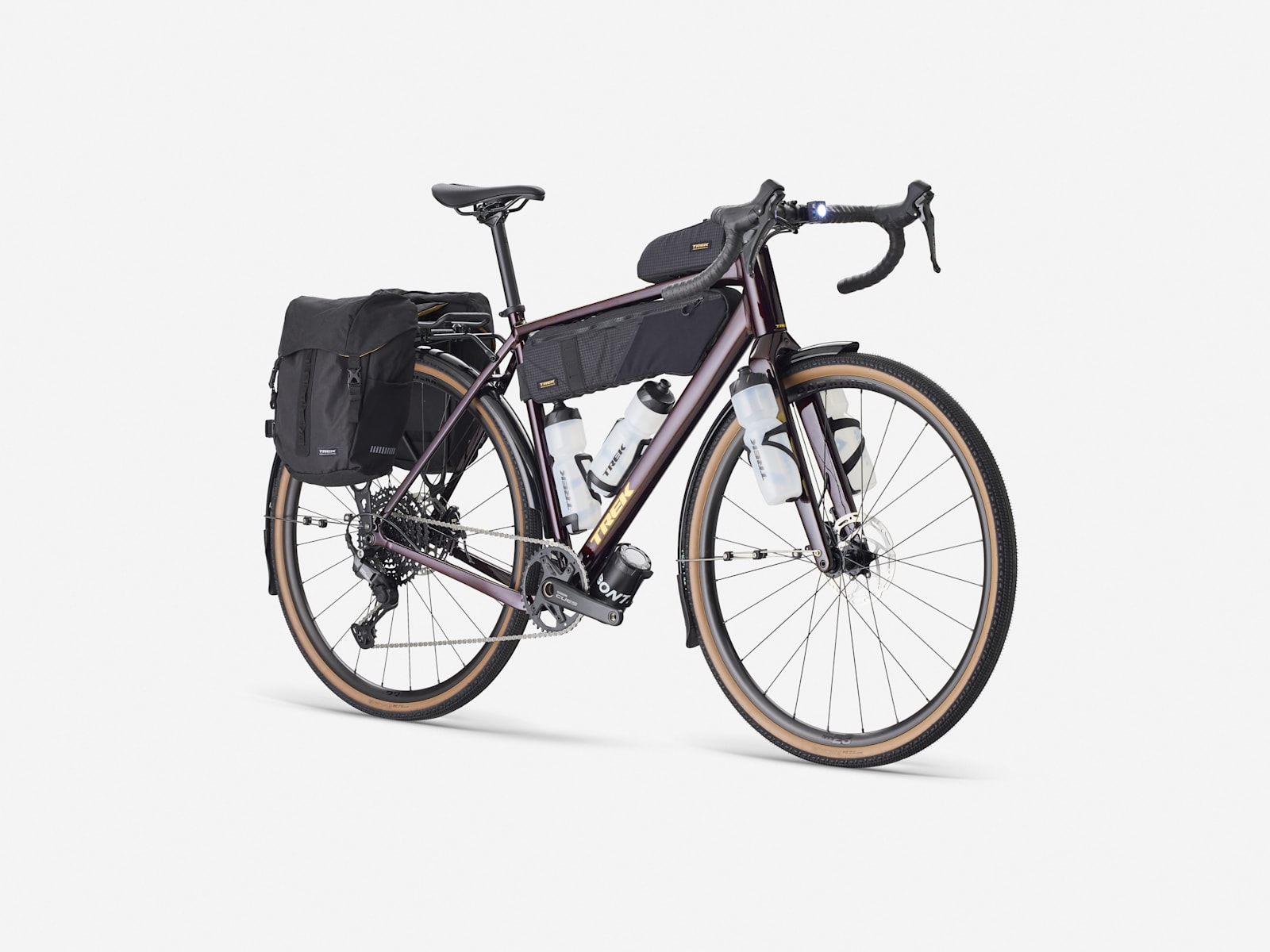

Mounts galore
The new Checkpoint ALR is equipped to carry everything you need with mounts on the frame and fork for front and rear racks, mudguards and Adventure Top Tube, Frame and Triangle Bags. Plus, the new frame has been optimised to fit extra hydration in addition to all your bags.
Gravel Endurance geometry
Designed with Gravel Endurance geometry with a higher stack and shorter reach for improved comfort and control on long days in the saddle.
Big 'ol tyre clearance
Designed with 50 mm (or 29 x 2.0)* tyre clearance for more grip and comfort on challenging terrain.*As measured
Suspension fork and dropper post compatible
Compatible with a suspension fork* and dropper post for riders tackling technical descents or seeking more aggressive off-road performance. *Available on all sizes except XS frames
A better way to produce aluminium
Starting in 2024, we began removing high-emission aluminium from our manufacturing and replacing it with low-emission aluminium made with renewable energy. By October 2025, nearly every alloy bike we make – this one included – had made the switch, driving a major drop in our footprint.
