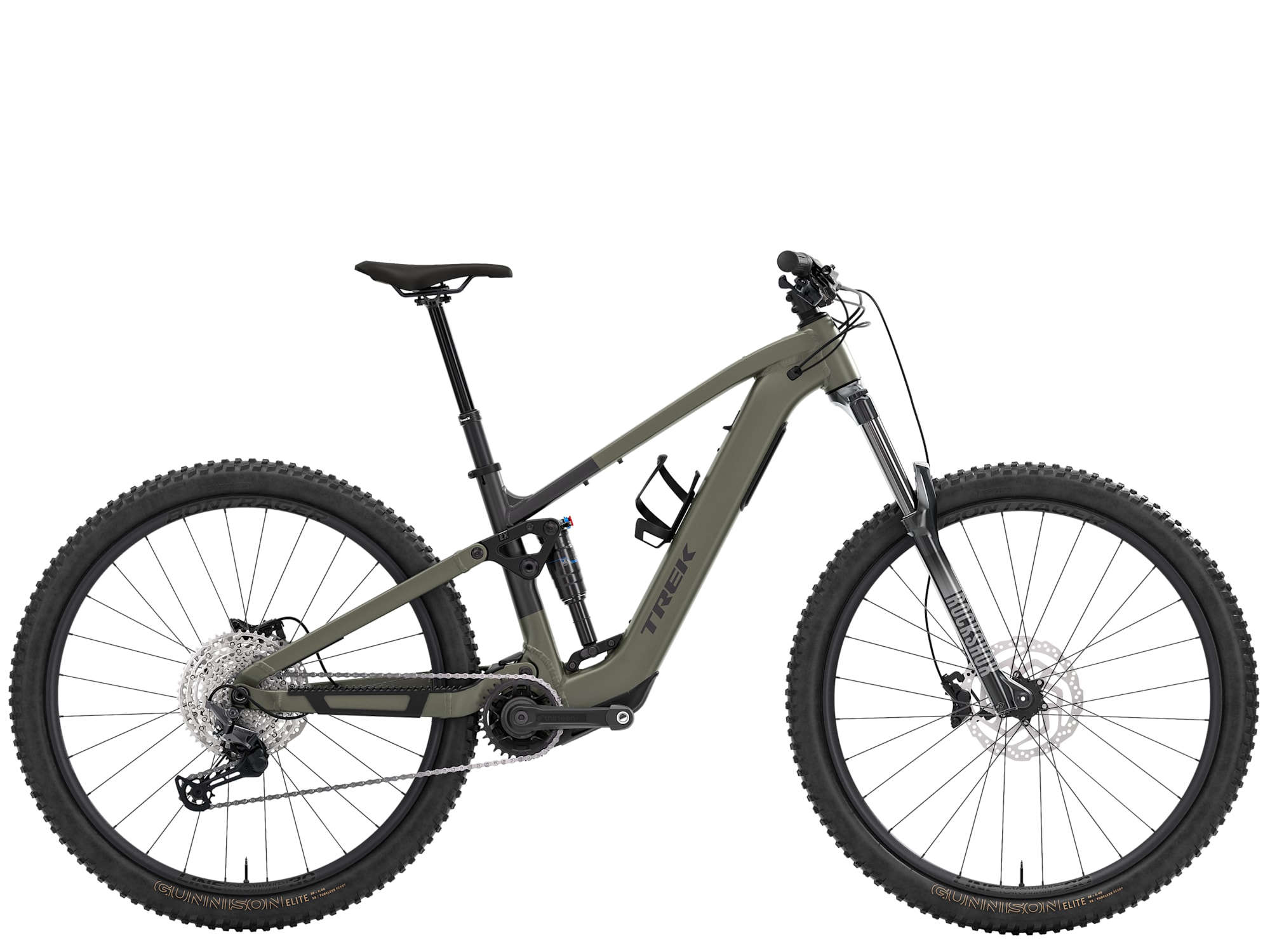

Trek Fuel+ EX 5 Gen 2 Matte Olive Grey/Trek Black
| Brand: | Trek |
| Model: | Fuel+ EX 5 Gen 2 |
| Frame: | Alpha NEXT Platinum aluminium, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
| Fork: | Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel |
| Brakeset: | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper |
| Hubs: | Front: Shimano TC500 alloy, CentreLock, 110x15 mm thru axle. Rear: Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Rims: | Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve |
| Crankset: | E*thirteen E*spec Plus, 160 mm length |
| Rear derailleur: | Shimano Deore M6100, long cage |
| Sizes: | M, L |
| Colors: | Matte Olive Grey/Trek Black |
- Overview
- Features
- Video
- Images
The Fuel+ EX 5 is a quiet and capable electric mountain bike that's up for any trail, at any time. Its Alpha NEXT Platinum aluminium frame delivers a smooth boost from a compact TQ HPR-60 motor, while a RockShox fork and X-Fusion shock (145 mm rear, 150 mm front) provide trail-smoothing confidence. A Shimano Deore drivetrain gives you plenty of gears for steep climbs and 4-piston Shimano M4100 hydraulic brakes provide reliable stopping power.

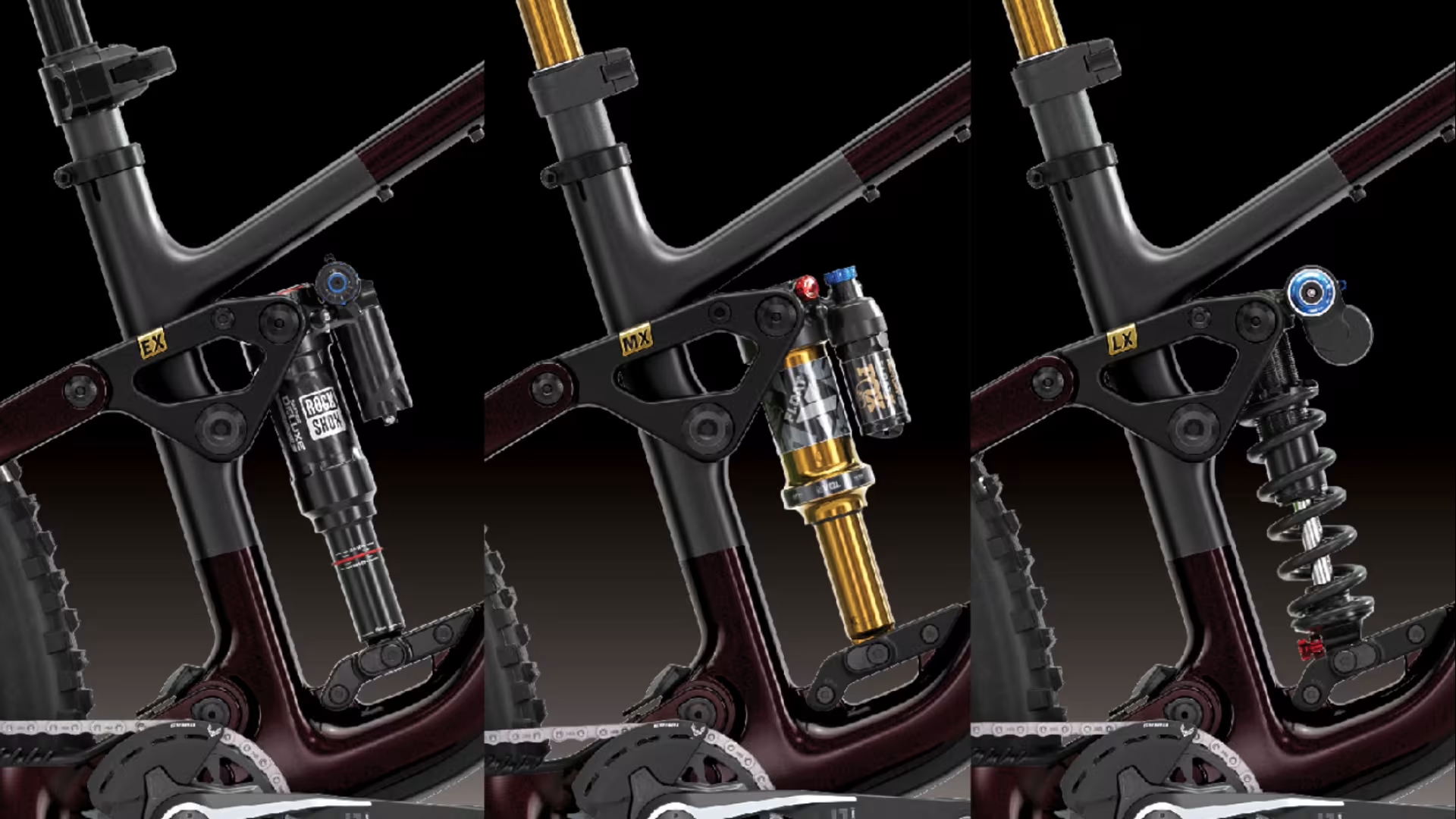

Adapt, rip, repeat
Only you can define your perfect trail bike – that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.

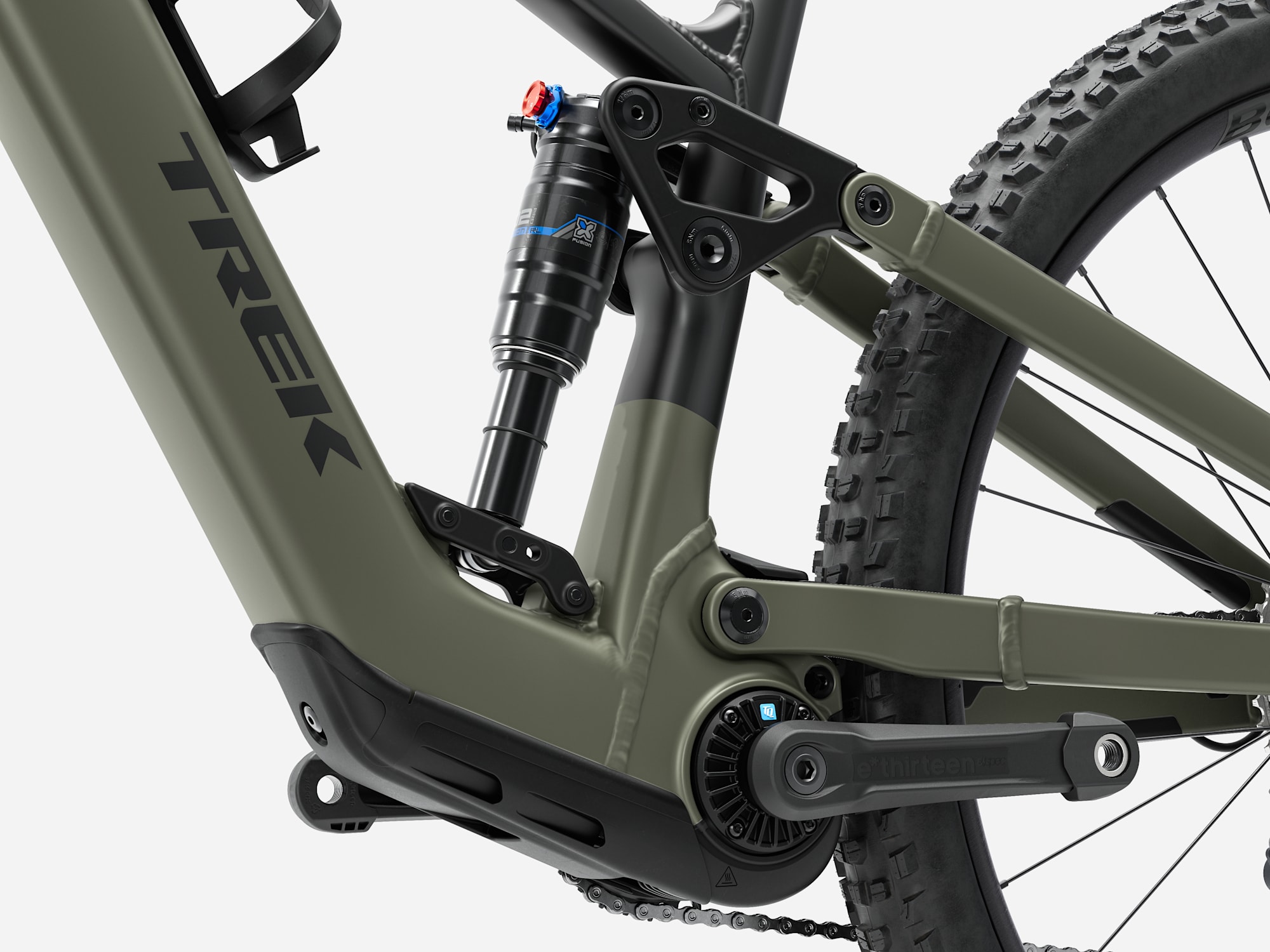

Adjustable leverage rate
Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate.

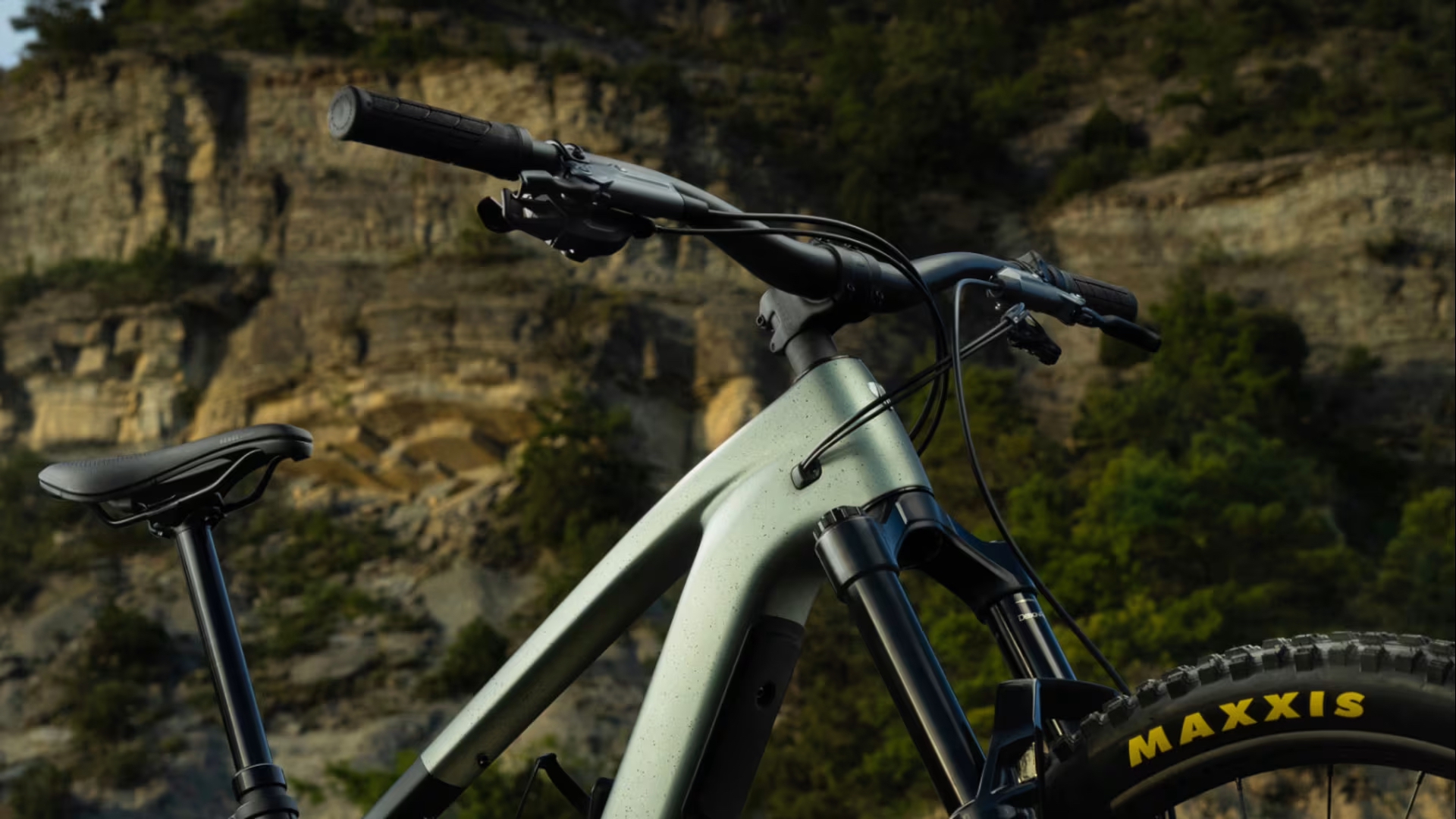

Zero stack integrated headset
With a ZS standard headset, you've got loads of options for aftermarket upgrades, including angle adjust or anodised colours.

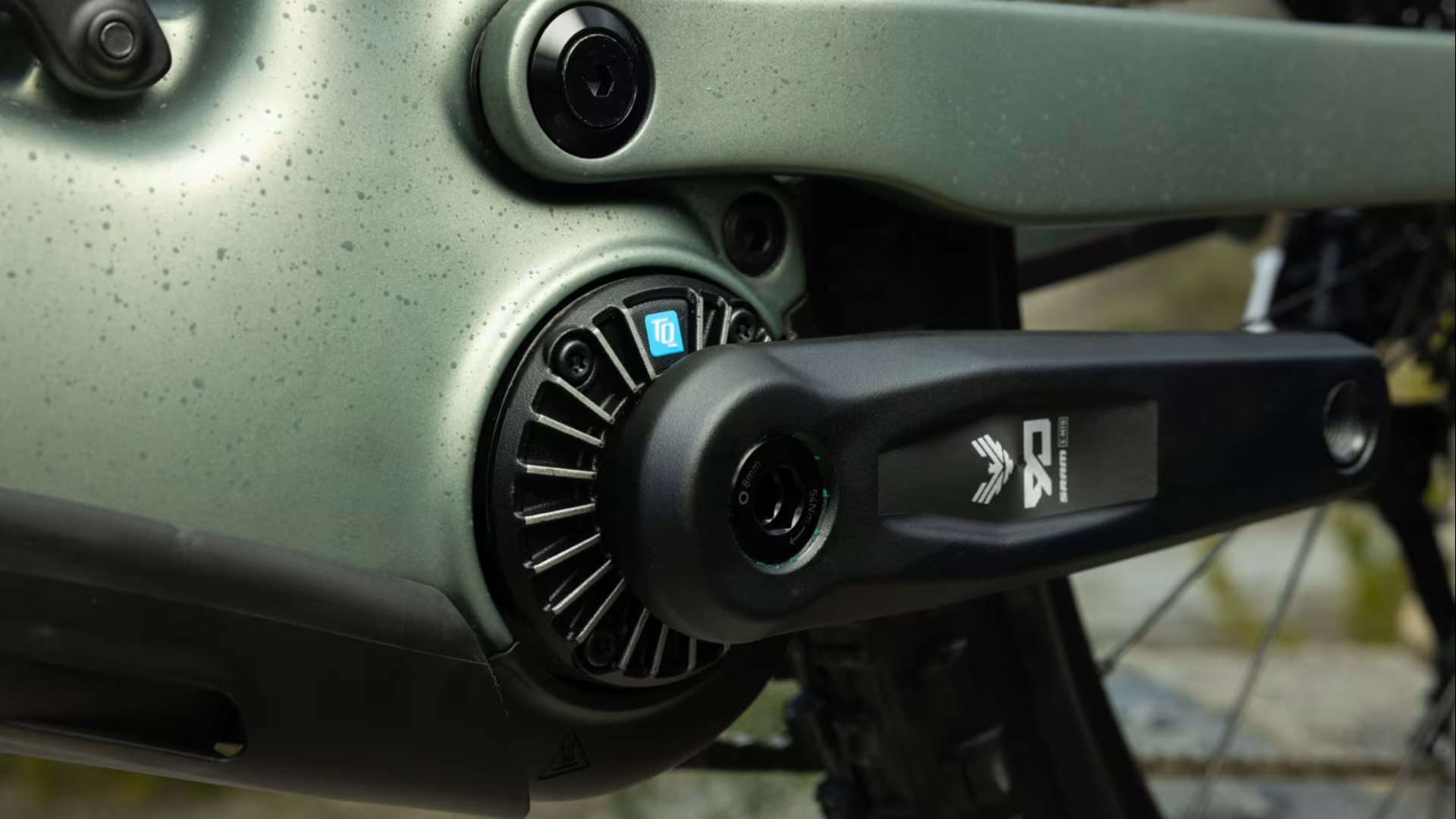

TQ HPR60
The Fuel+'s new HPR60 motor delivers more power and torque than before, and kicks in at a lower cadence so you feel the boost earlier. Plus, a 580 Wh battery gives you more efficient power for your longest rides yet.
TQ HPR60
The Fuel+'s new HPR60 motor delivers more power and torque than before, and kicks in at a lower cadence so you feel the boost earlier. Plus, a 580 Wh battery gives you more efficient power for your longest rides yet.

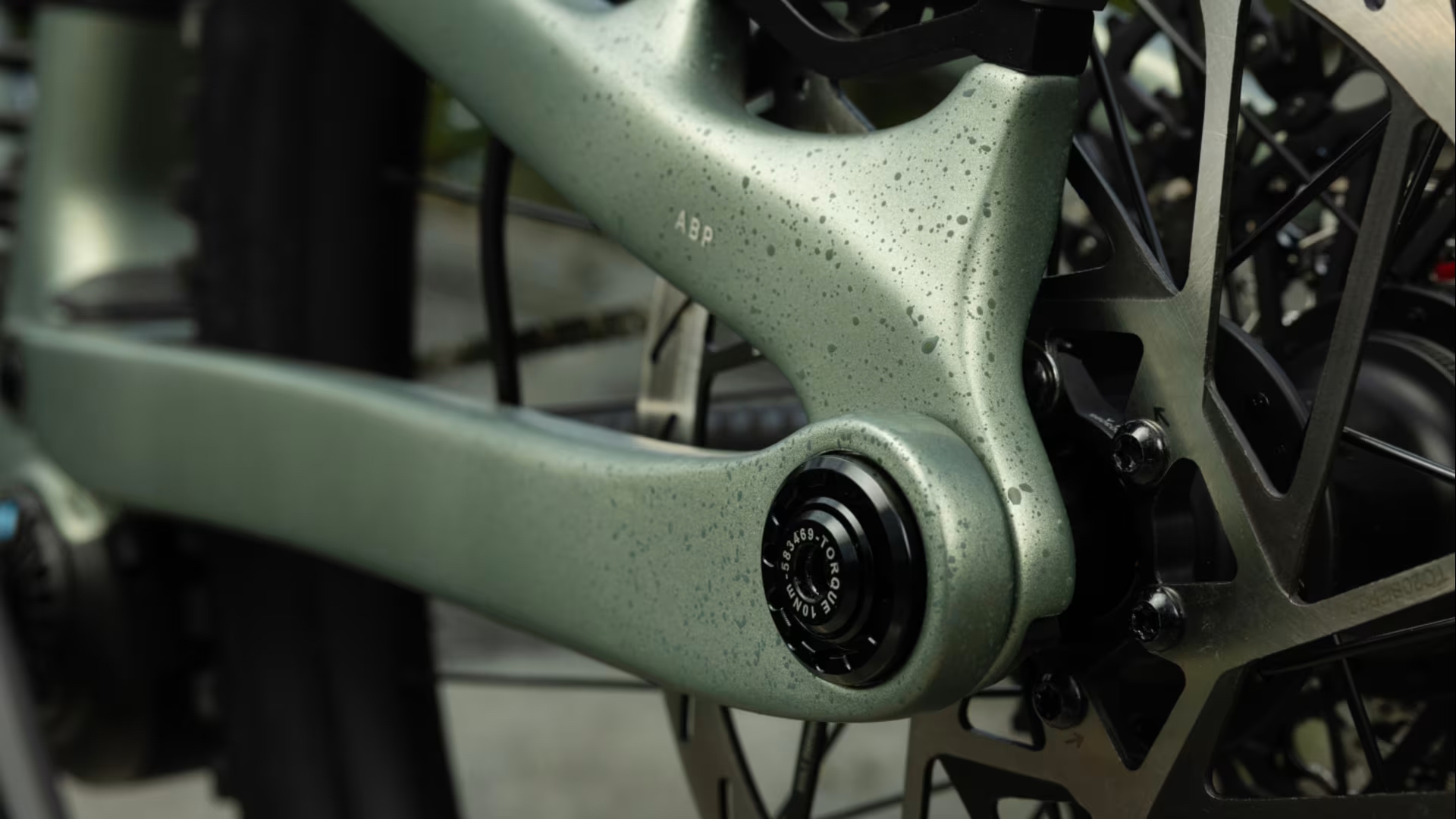

Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
A better way to produce aluminium
Starting in 2024, we began removing high-emission aluminium from our manufacturing and replacing it with low-emission aluminium made with renewable energy. By October 2025, nearly every alloy bike we make – this one included – had made the switch, driving a major drop in our footprint.
